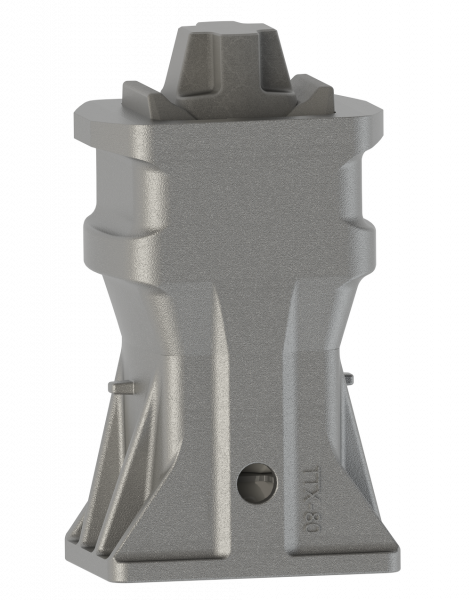

Draft gear TTX-80 – AAR M901E

Draft gear TTX-80 – AAR M901E

Key advantages

  1. Official rating travel: 3.07 inches / 78 mm.
  2. The lightest M-901E draft gear.
  3. Highest capacity M-901E draft gear.
  4. Excellent durability, due to design features of the housing.
  5. Interchangeable with standard (AAR Rule 21) draft gears.
  6. Can be used in harsh environments and requires no additional maintenance.
  7. Low prime cost.

Technical data

Dimensions

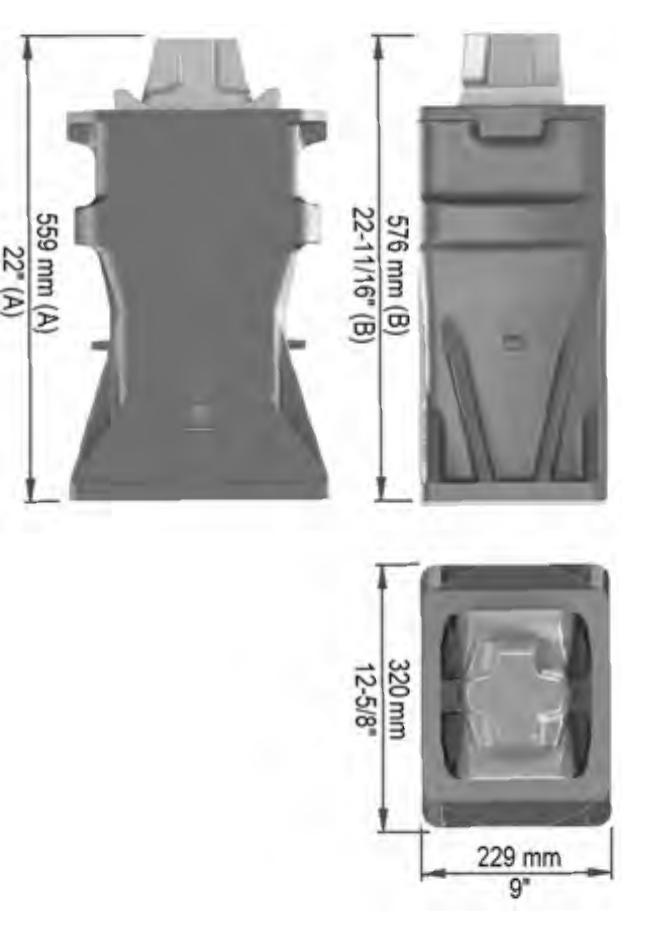

Draft gear TTX-80 – AAR M901E dimensions

Drop hammer force-stroke graph

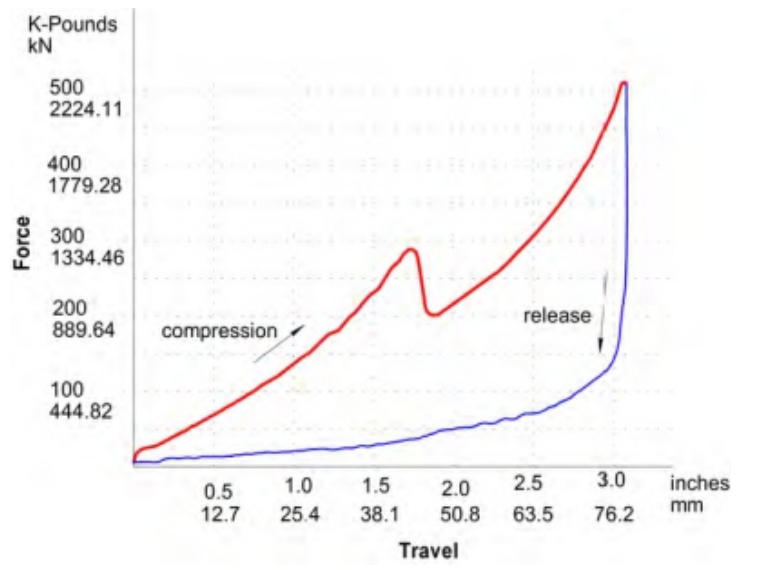

Draft gear TTX-80 – AAR M901E force-stroke graph

Performance table

Official rating travel 3.07 inches / 78 mm
Official rating capacity ≥45,000 foot pounds / 61 kJ
Weight 255 pounds / 115.6 kg
Preshortened for standard 24-5/8" pocket A=22 inches / 559 mm
Assembled to free height B=22-11/16 inches / 576 mm
