Draft Gears

  • Damping devices
    • Draft Gears
      • Draft gear KP-80.2 – AAR M901G and TB/T 1961-2023
      • Draft gear TTX-80 – AAR M901E
      • KHT-82
      • KMT-82E (All-Steel)
      • KMT-82G (All-Steel)
      • KPA-81
    • Buffer springs
    • Draw gear spring package
    • Constant contact side bearings
    • Mining truck shock absorber
    • DAC DRAFT GEAR EWS
    • DRAFT GEAR PASSENGER
  • Polymer springs
  • Polymer pads
damping devices

Kraftler high-capacity draft gears are designed for a wide range of rail vehicles and demanding operating conditions. They meet AAR M-901E and M-901G specifications and fit the standard 24-5/8-inch pocket.

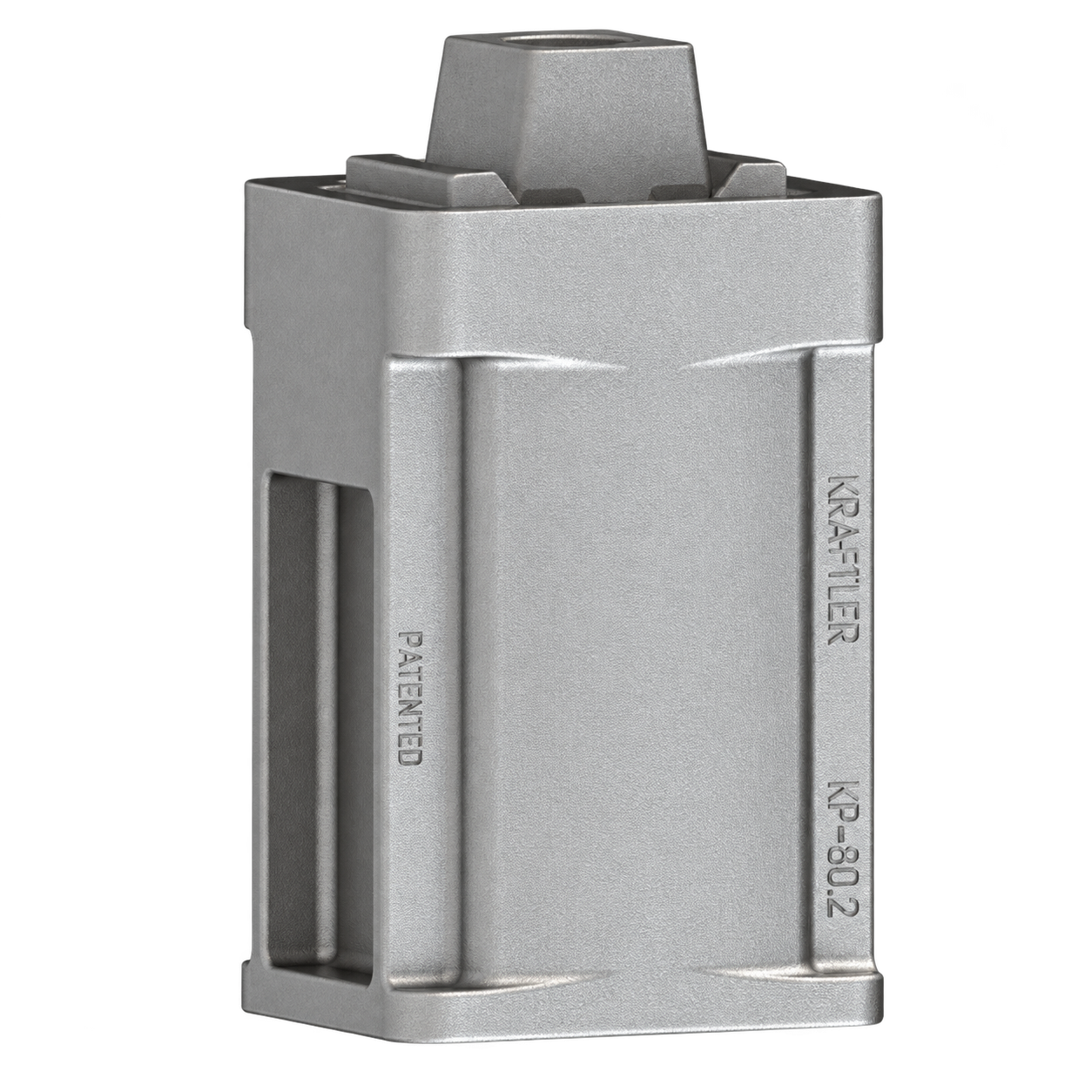

Draft gear KP-80.2 – AAR M901G and TB/T 1961-2023

  • Performance table
  • Official rating travel: 3.27 inches / 83 mm
  • Official rating capacity: > 61,955 foot pounds / 84 kJ
  • Weight: 382 pounds / 142 kg

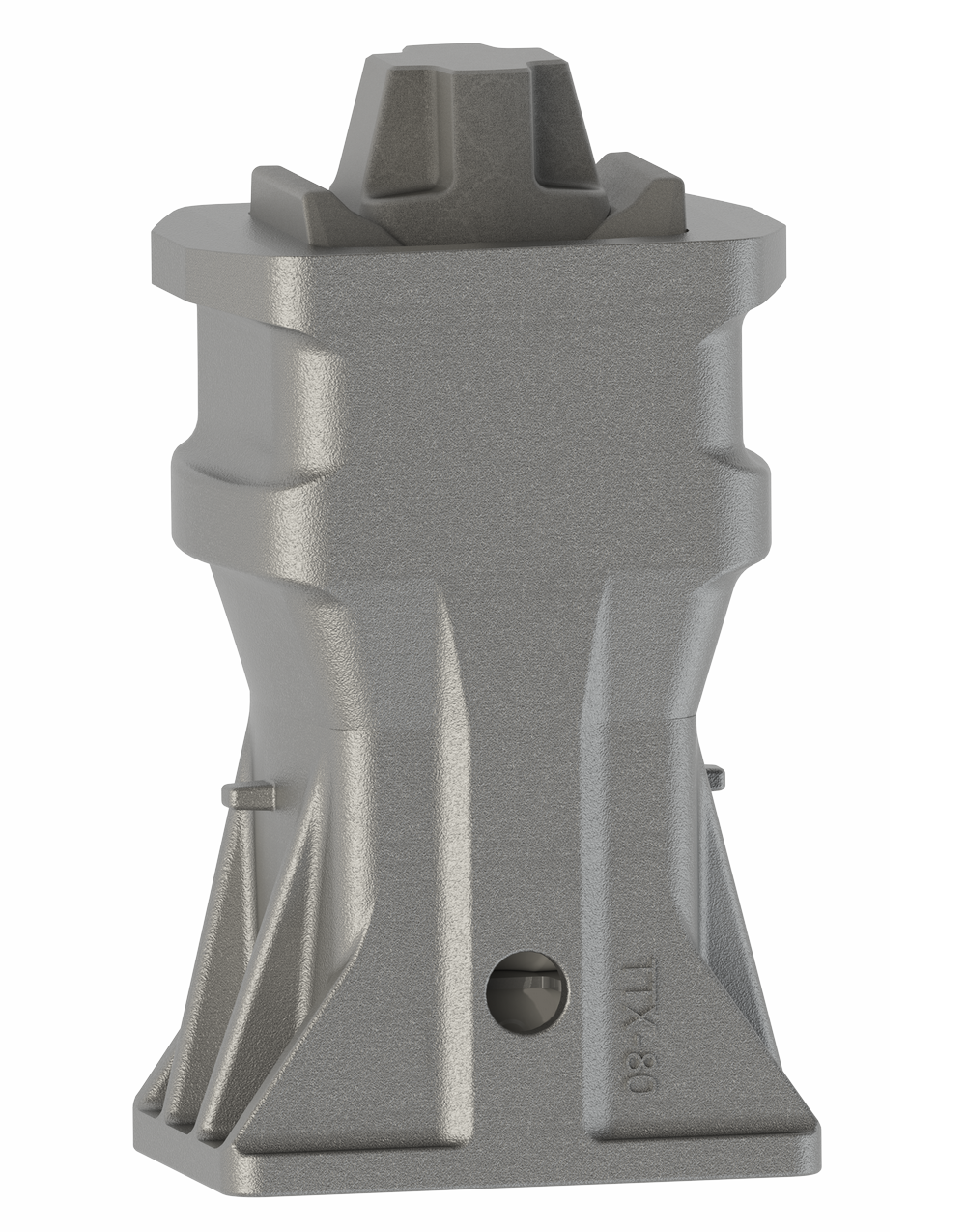

Draft gear TTX-80 – AAR M901E

  • Performance table
  • Official rating travel: 3.07 inches / 78 mm
  • Official rating capacity: ≥ 45,000 foot pounds / 61 kJ
  • Weight: 255 pounds / 115.6 kg

KHT-82

  • Performance table
  • AAR M-901-E
  • Elastomer insert
  • Rated capacity: 45,600 ft-lb
  • Travel: 3.19 inches
KHT-82

KMT-82E (All-Steel)

  • Performance table
  • AAR M-901-E
  • All-steel
  • Rated capacity: 48,600 ft-lb
  • Rated travel: 3.19 inches

KMT-82G (All-Steel)

  • Performance table
  • AAR M-901-G
  • All-steel
  • Rated impact velocity: 5.6 mph
  • Travel: 3.19 inches

KPA-81

  • Performance table
  • AAR M-901-E
  • All-steel
  • Rated capacity: 45,900 ft-lb
  • Travel: 3.19 inches
