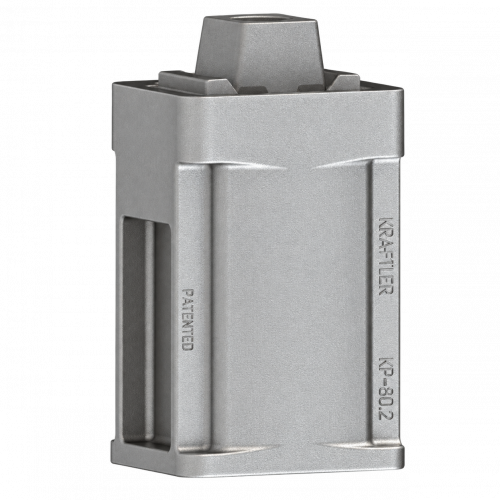

Draft gear KP-80.2 – AAR M901G and TB/T 1961-2023

Key advantages

  1. Maximum travel: 3.27 inches / 83 mm.
  2. Maximum end force: < 2500 kN.
  3. High capacity.
  4. Excellent durability due to the design features of the housing.
  5. Can be used in harsh environments and requires no additional maintenance.
  6. Low prime cost.

Characteristics

Official rating travel 3.27 inches / 83 mm
Official rating capacity > 61,955 foot pounds / 84 kJ
Weight 382 pounds / 142 kg

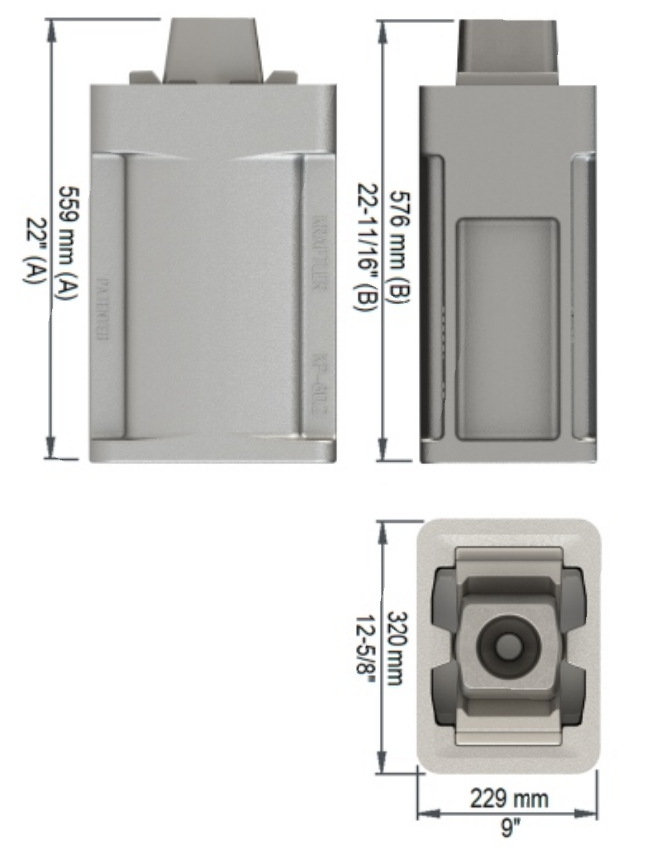

Preshortened for standard 24-5/8" pocket A = 22 inches / 559 mm
Assembled to free height B = 22-11/16 inches / 576 mm
