For use in locomotives, freight cars, passenger coaches and special rail vehicles. Kraftler draw gear springs comply with the requirements of EN 15566.

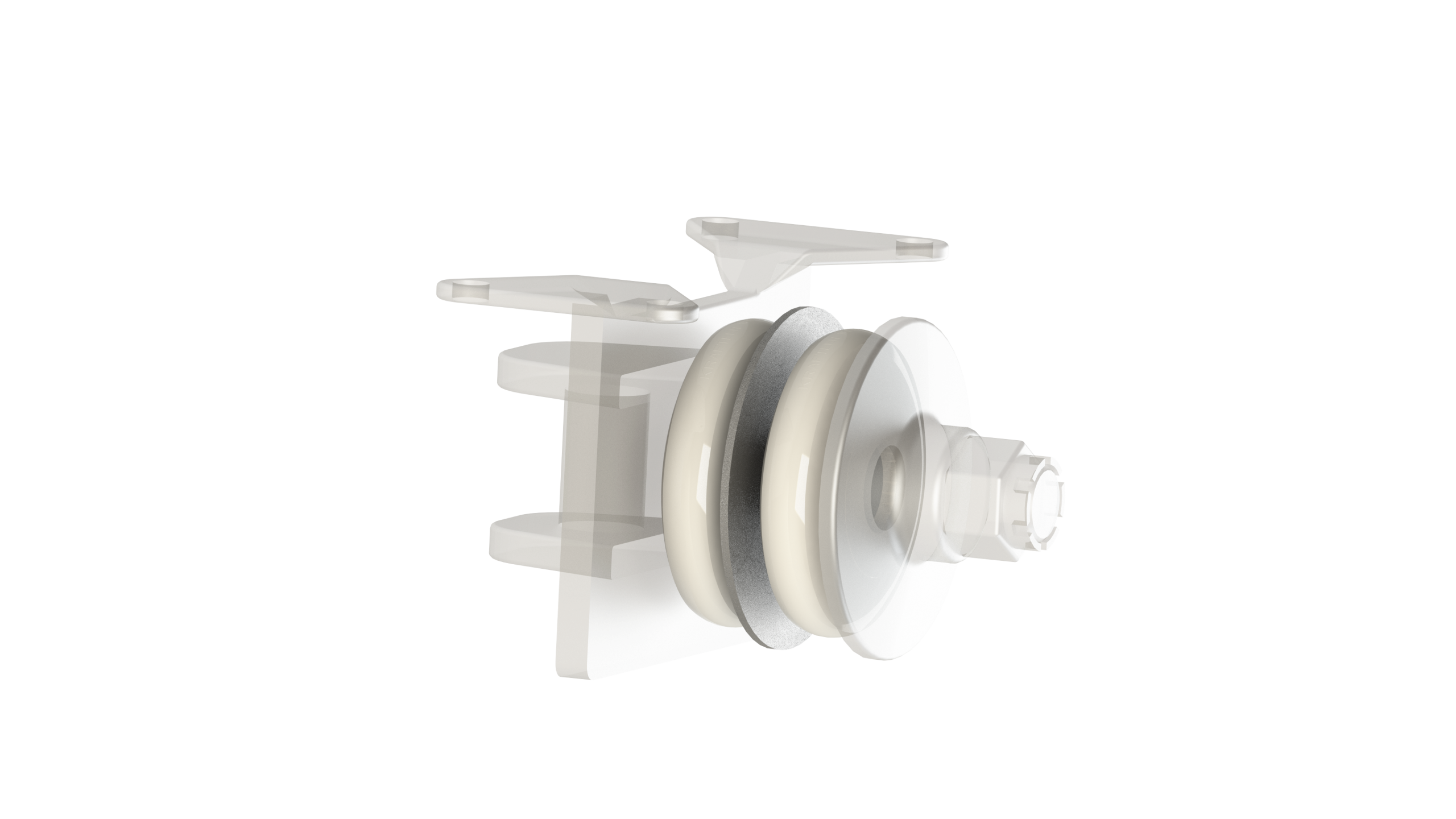

Draw gear spring KT-15 – 1 MN

  • Performance table
  • Energy absorption (static): > 16 kJ
  • Damping: > 48 %
  • Pre-tension force: ≥ 24.7 kN
  • Max. end force: ≤ 870.9 kN

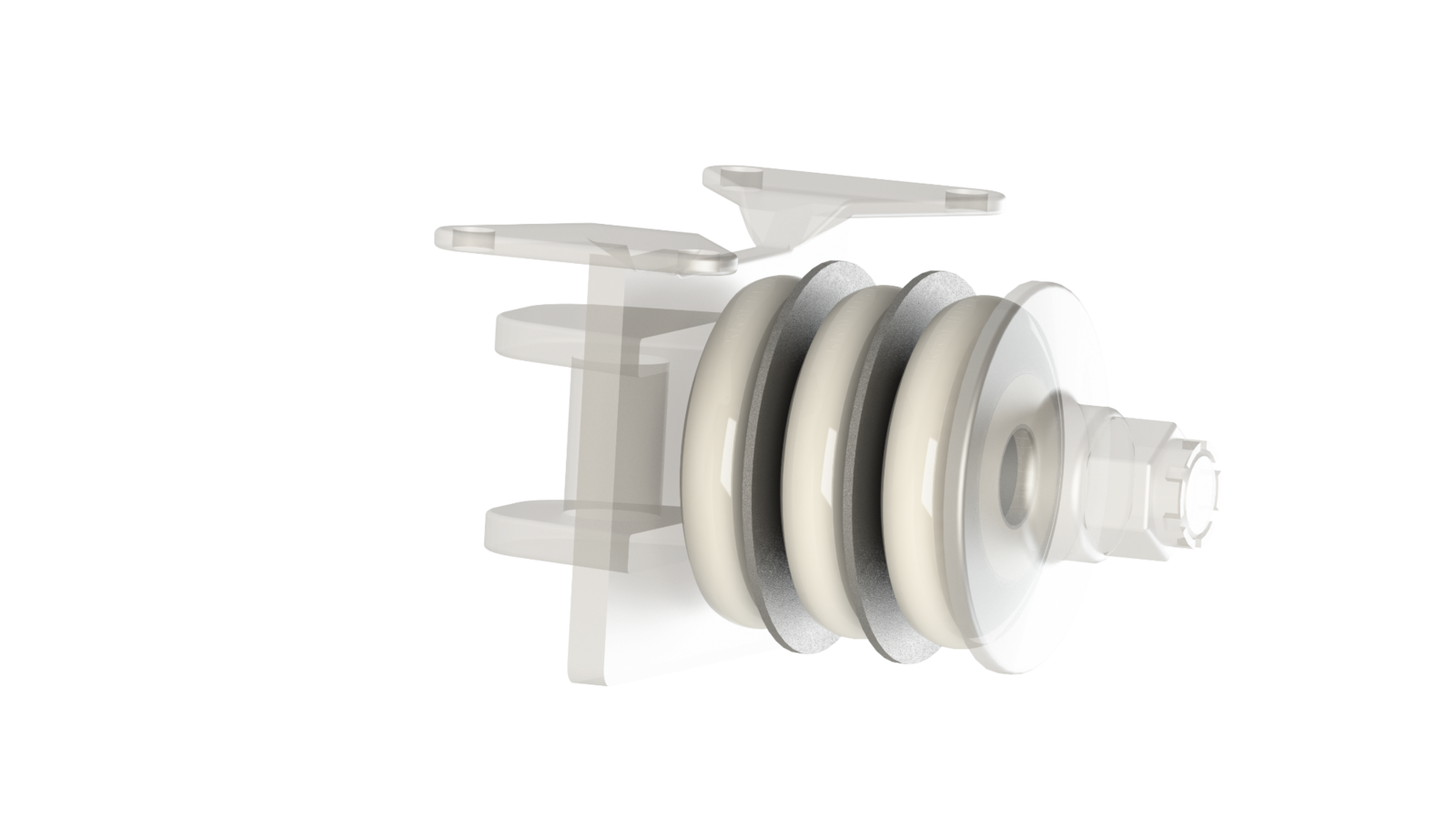

Draw gear spring KT-20 – 1.5 MN

  • Performance table
  • Energy absorption (static): > 23.1 kJ
  • Damping: > 55 %
  • Pre-tension force: ≥ 15.8 kN
  • Max. end force: ≤ 1340 kN
