Draw gear spring KT-15 – 1 MN

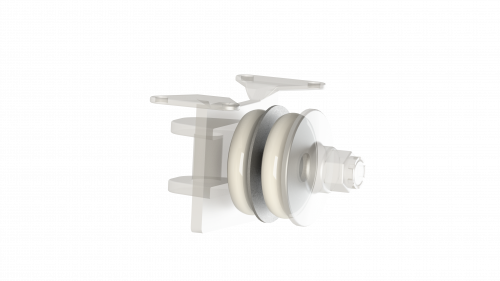

Draw gear spring KT-15 – 1 MN

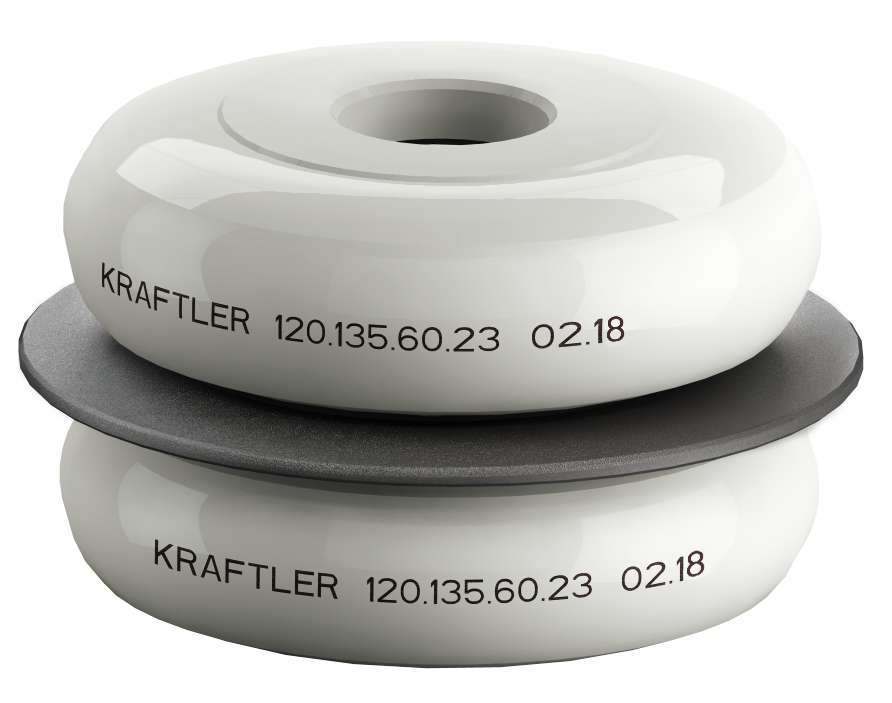

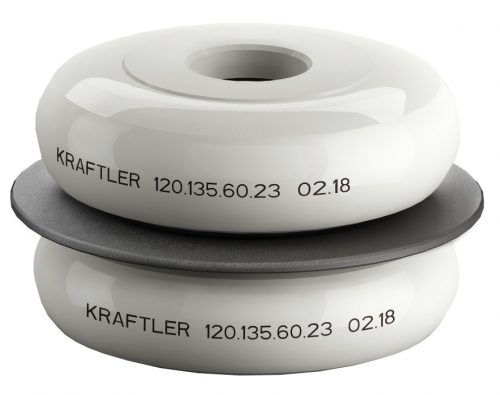

Draw gear spring KT-15 – 1 MN component

Key advantages

Draw gear springs absorb longitudinal loads and tractive forces within a train formation. They are used in locomotives, freight cars, passenger coaches and special rail vehicles. Kraftler draw gear springs comply with the requirements of EN 15566.

  • Excellent energy absorption
  • High resistance to extreme loads and physical damage
  • Reliable performance across a temperature range from -50°C to +50°C
  • Excellent resistance to harsh environments
  • Durable, sustainable and recyclable

Download PDF

Dimensions

Draw gear spring KT-15 – 1 MN dimensions
A: Installed height150 ± 2 mm
B: Diameter of pads at full stroke240 ± 3 mm
C: Diameter of intermediate plate240 ± 2 mm
D: Diameter of center hole60 ± 0 mm
E: Height at full stroke90 ± 2 mm

Characteristics

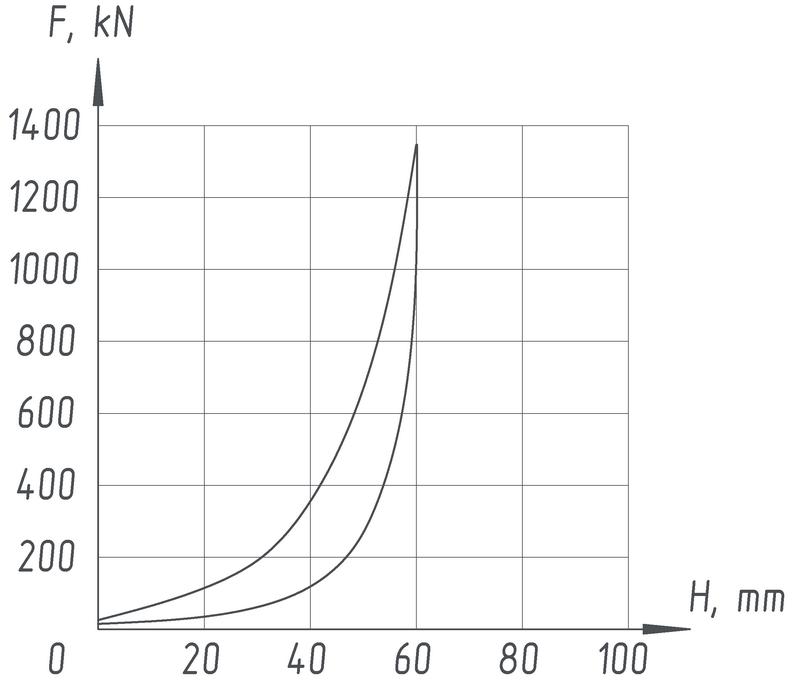

Draw gear spring KT-15 – 1 MN force-stroke graph
Energy absorption (static) > 16 kJ
Damping > 48 %
Pre-tension force ≥ 24.7 kN
Max. end force ≤ 870.9 kN
Stroke ≤ 60 mm
Weight ≤ 5 kg
