damping devices

DRAFT GEAR PASSENGER RDSO/2017/CG-07

  • Performance table
  • Complies with the requirements of RDSO/2017/CG-07
  • Drawbar angular deviation: 6° horizontal, 12° vertical
  • Weight: 224 kg (mass reduction in progress)

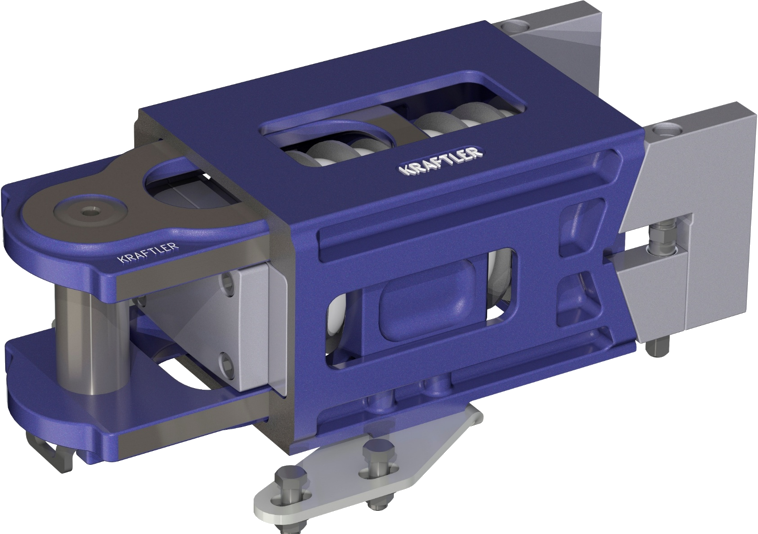

KRAFTLER EWS-A-600

  • Performance table
  • Price-optimized design for cost-efficient DAC upgrades
  • Meets the applicable European standards (prEN 18171, UIC 522/530/524)
  • Excellent stability — angles γ and β consistently remain within 1.25°
  • Weight: 273 kg (including holding plates)
  • Pocket length: 600 mm

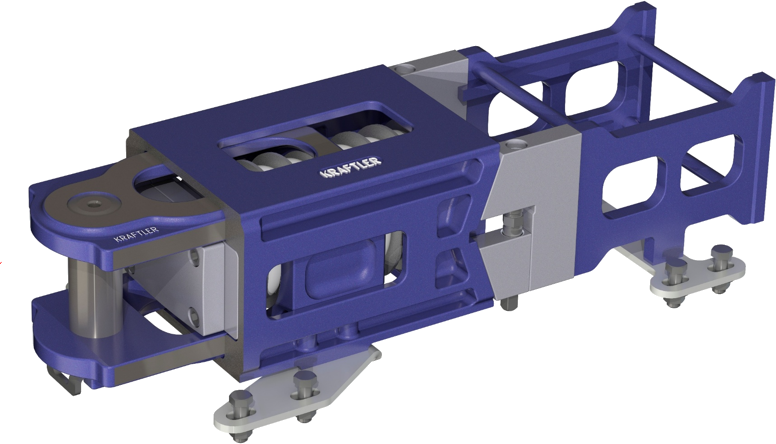

KRAFTLER EWS-A-975

  • Performance table
  • Price-optimized design for cost-efficient DAC upgrades
  • Meets the applicable European standards (prEN 18171, UIC 522/530/524)
  • Excellent stability — angles γ and β consistently remain within 1.25°
  • Weight: 309 kg (including holding plates)
  • Pocket length: 975 mm

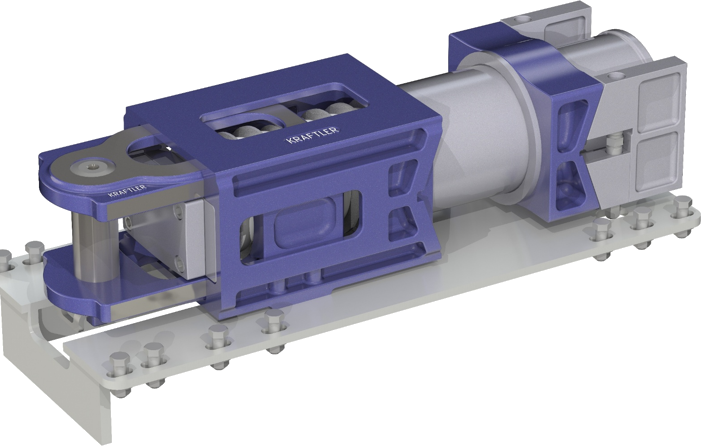

KRAFTLER EWS-AX-975

  • Performance table
  • High-energy crash module — energy absorption > 675 kJ
  • Common platform with EWS-A — interchangeable parts
  • Compliant with European standards — prEN 18171, UIC 522/530/524
  • Excellent stability on S-curves and under cross-loads
  • Weight: 400 kg (including holding plates)
  • Pocket length: 975 mm
